Layout Moves

Sometimes it's hard to predict which layout will look best - often the plan (i.e. "in plan", looking down) doesn't tell the story of standing in the room. Using a 3D package and exporting a similar view is helpful. Hover to see notes. The differences are subtle!

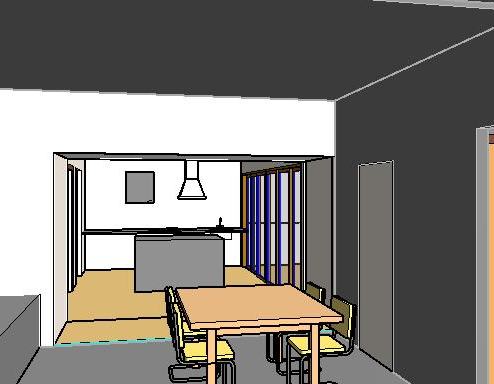

Option 3
Setback on Left

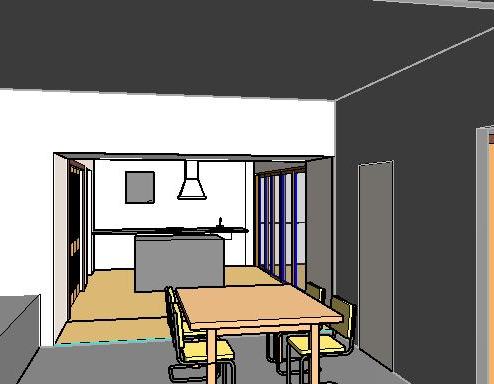

option1
No Setback Left

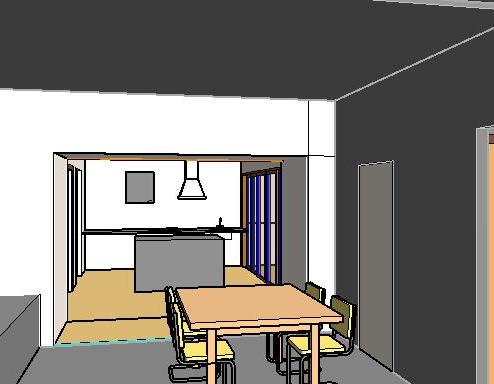

Option 4 1
Return on right
option1 1
Setback Left, Open to right for view. This looks best.
